First Impact
SiGMA

Case study

SiGMA

Multicamera production and two concurrent live streams for the SiGMA North America 2026 awards ceremony and two days of international conference in Mexico City.

Introduction

SiGMA brings its conference circuit to a different region each edition. North America 2026 was the Mexico City edition — and it was not one event. It was three productions on one scope: two rehearsal days, an awards ceremony, and two days of conference programming.

Each has a different audience and a different failure mode. The awards ceremony is the reputational moment for winners and sponsors; miss the moment and there is no second take. The conference is the content the industry watches afterwards, which means it has to survive being clipped, quoted and replayed.

All of it sat inside a single video scope, feeding room screens and two concurrent live streams, with a budget that moved during planning. At any moment the audience watching remotely outnumbered the audience in the hall. The job was to hold one clean program feed for both.

Objective

Direct and mix a single program feed clean enough to drive room screens and two live streams at the same time — covering the awards ceremony with enough angles that no winner's moment falls outside frame, running an independent interview stream without drawing crew or bandwidth away from the main program, recording the finished program and camera ISOs locally so the archive never depends on the stream surviving, and distributing the directed program back to reference screens in the hall so the in-room audience watches the same cut as the remote one.

Scope

What had to hold

Rehearsals

Camera positions, framing and switching flow prepared across the awards rehearsal on 31 August and the conference rehearsal on 1 September.

Awards ceremony

Multicamera production and live direction of the awards ceremony, with the client’s graphics package switched live into the program mix.

Conference programming

Two full days of multicamera conference production with live switching, preview and program monitoring.

Two concurrent live streams

A main program stream and a dedicated interview stream, delivered to the client’s digital platform.

Recording and distribution

Finished program recorded locally with camera ISOs, and PGM distributed to reference screens in the hall.

Solution Implemented

How it was produced

Capture

One Panasonic AG-CX350 4K with a dedicated operator, plus three PTZ cameras covering stage, wide and reverse angles.

Second stream

A second AG-CX350 assigned to interviews, fed over a Hollyland HDMI transmitter so the position stayed mobile.

Direction

Blackmagic ATEM Television Studio Pro HD — SDI and HDMI inputs, embedded audio, chroma key, live switching to PGM.

Comms

Clear-Com PK-7 base station with four beltpacks and headsets, so direction, camera and stage stayed on one loop.

Record

Blackmagic HyperDeck Studio HD Plus recording the finished program, with 128 GB and 64 GB SDXC cards for PGM and camera ISOs.

Distribute

vMix streaming kit to the digital platform, and PGM cabled out to reference screens in the room.

Technical Equipment

What we ran it on

Audio Equipment

Program audio
Two Bose L1 Pro-16 compact line array systems with subwoofer
Signal integration
Audio and power cabling; program audio embedded into the ATEM

Lighting Equipment

Outside the video scope
Lighting was coordinated with the event’s general production

Video Equipment

Main program camera
Panasonic AG-CX350 4K with operator
Additional angles
Three PTZ cameras — stage, wide and reverse

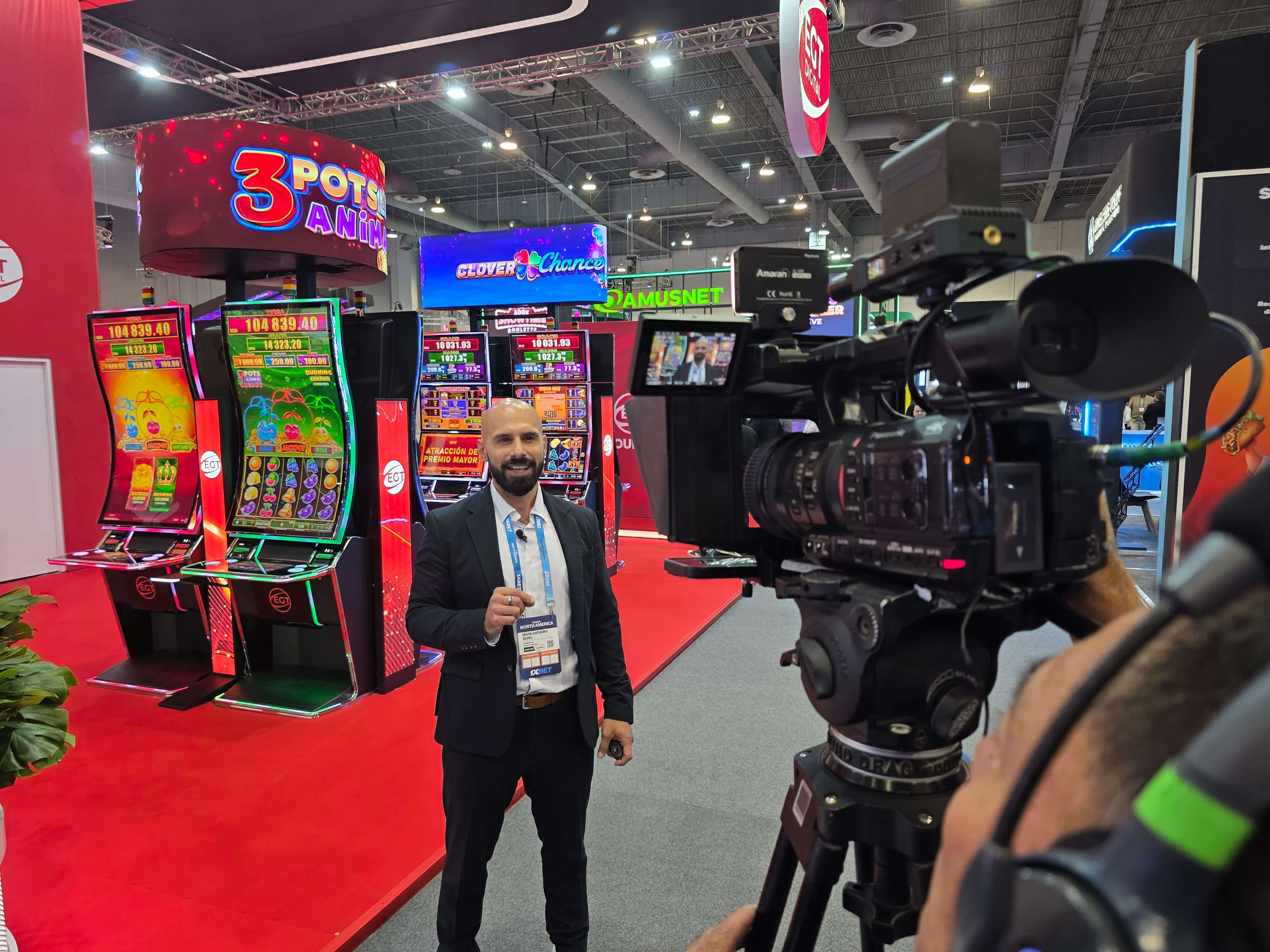

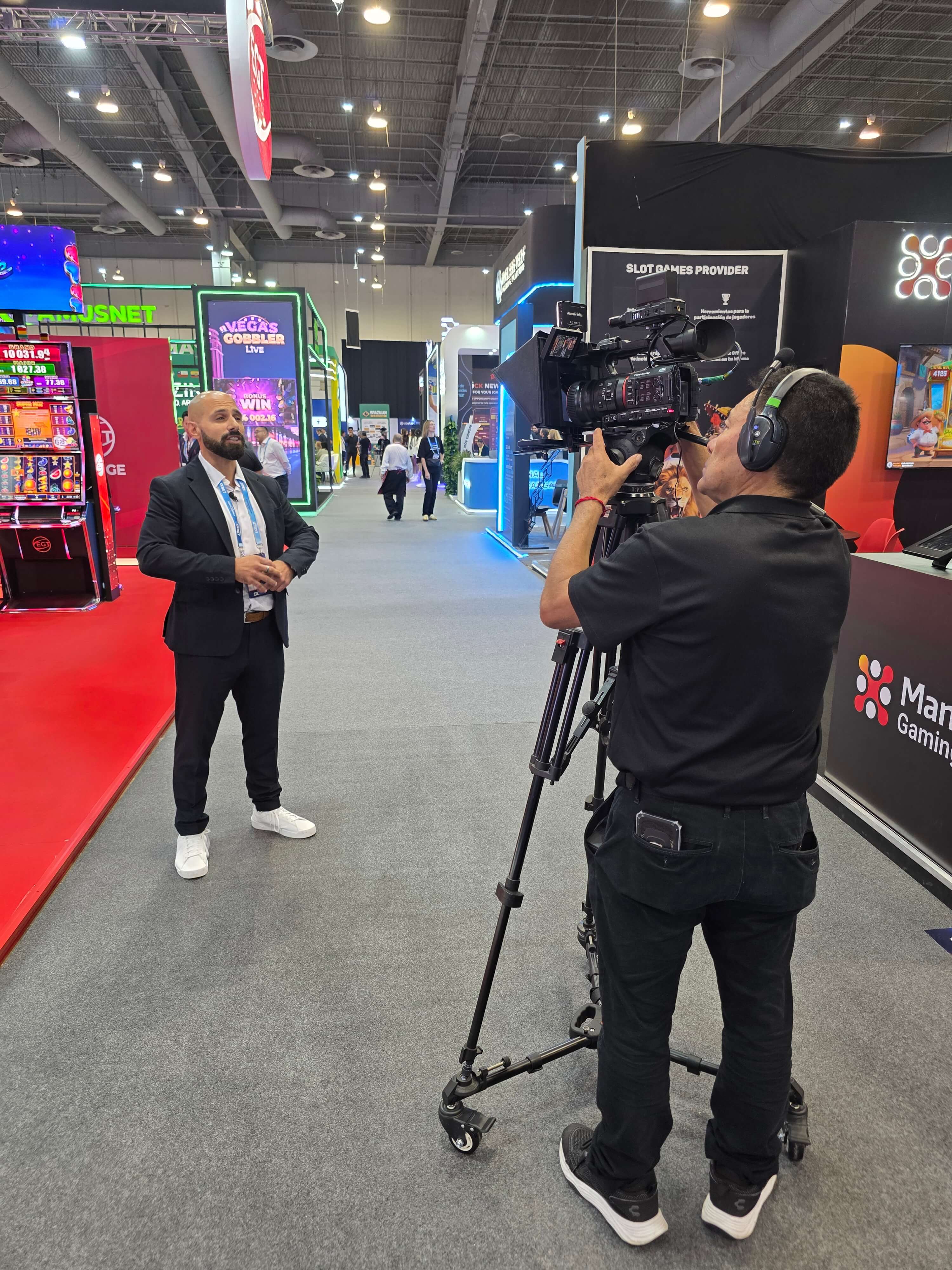

Interview camera, second stream
Panasonic AG-CX350 with Hollyland HDMI transmitter
Live switching and program mix
Blackmagic ATEM Television Studio Pro HD
Program recording
Blackmagic HyperDeck Studio HD Plus with 128 GB and 64 GB SDXC cards
Stream encoding and delivery
vMix kit — production laptop, audio interface, capture device

Other Equipment

Production intercom
Clear-Com PK-7 base station with four beltpacks and headsets
Reference screens
Samsung AU7000 55" and two LG 75UQ9050PSC 75" on floor stands

Results

What it delivered

Two concurrent live streams

The main program and a dedicated interview feed ran side by side, without the second stream drawing crew or bandwidth from the first.

Four cameras on the main program

One operated Panasonic AG-CX350 4K and three PTZ cameras covering stage, wide and reverse angles.

Three directed live blocks

The awards ceremony and two full days of conference programming, each directed and switched live.

One feed, three destinations

A single directed mix served the reference screens in the hall and both live streams at the same time.

A full program archive

The finished program recorded to HyperDeck with camera ISOs on SDXC as backup, independent of the stream.

Scope held inside budget

The technical and commercial proposal was reworked during planning so the essential production survived the change.

Value Added

Beyond the brief

One accountable team

Planning, multicamera direction, program mix, live streaming and recording ran under one team, not a chain of subcontractors.

A design that flexed

One production design absorbed rehearsals, an awards ceremony, an international conference and two concurrent streams without being rebuilt between them.

Built for live change

Scope, schedule and stream agenda shifted during planning and were absorbed without losing production elements that mattered.

Commercially re-engineered

The technical and commercial proposal was reworked to keep the essential production inside the client’s approved budget.

Room and feed together

The production served the audience in the hall and the audience watching remotely as one job, not two.

A partner on the ground

SiGMA finished the edition with an established production partner in Mexico for future events.

""

Eric Zwanenburg

Gallery

From the production

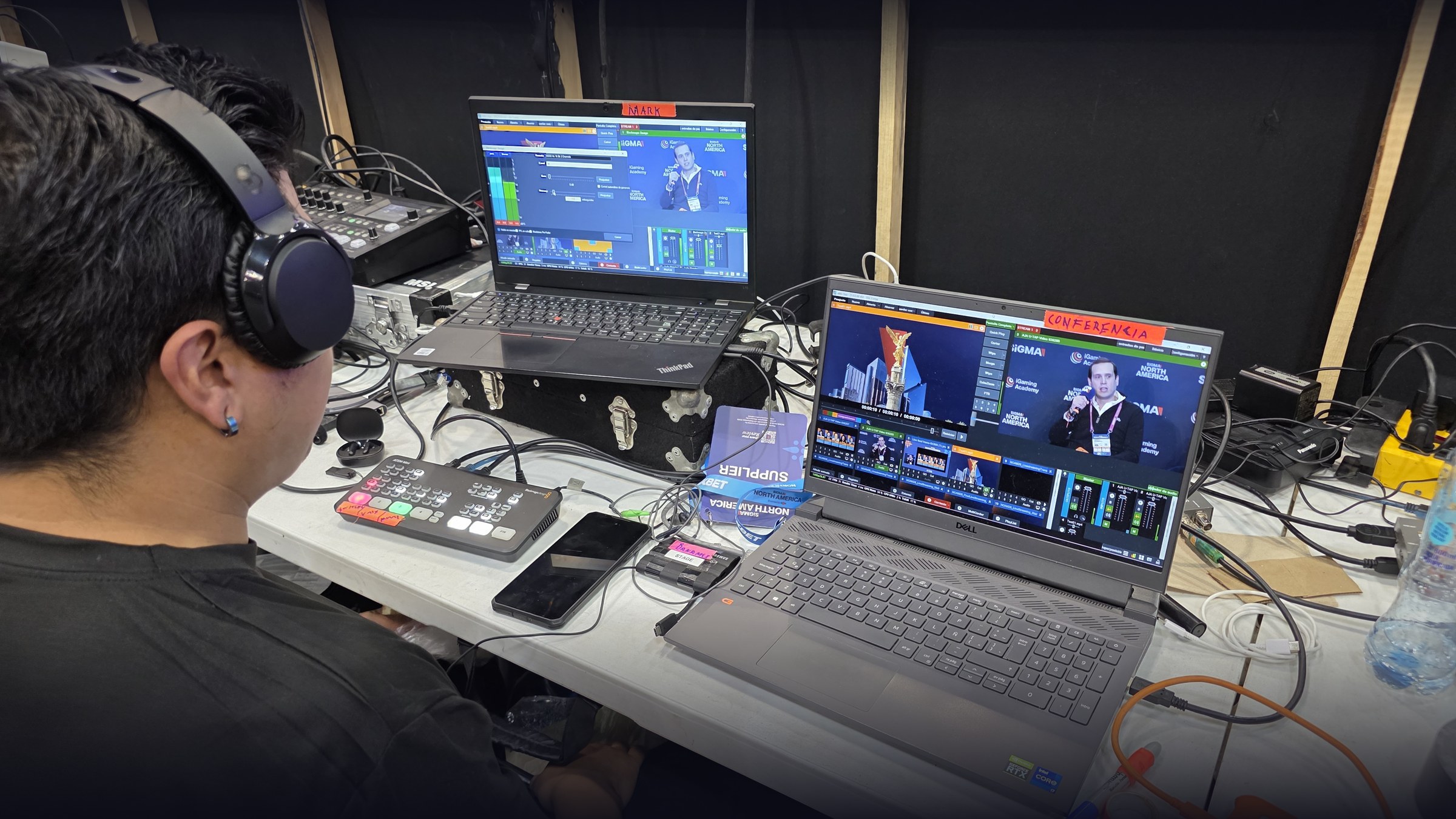

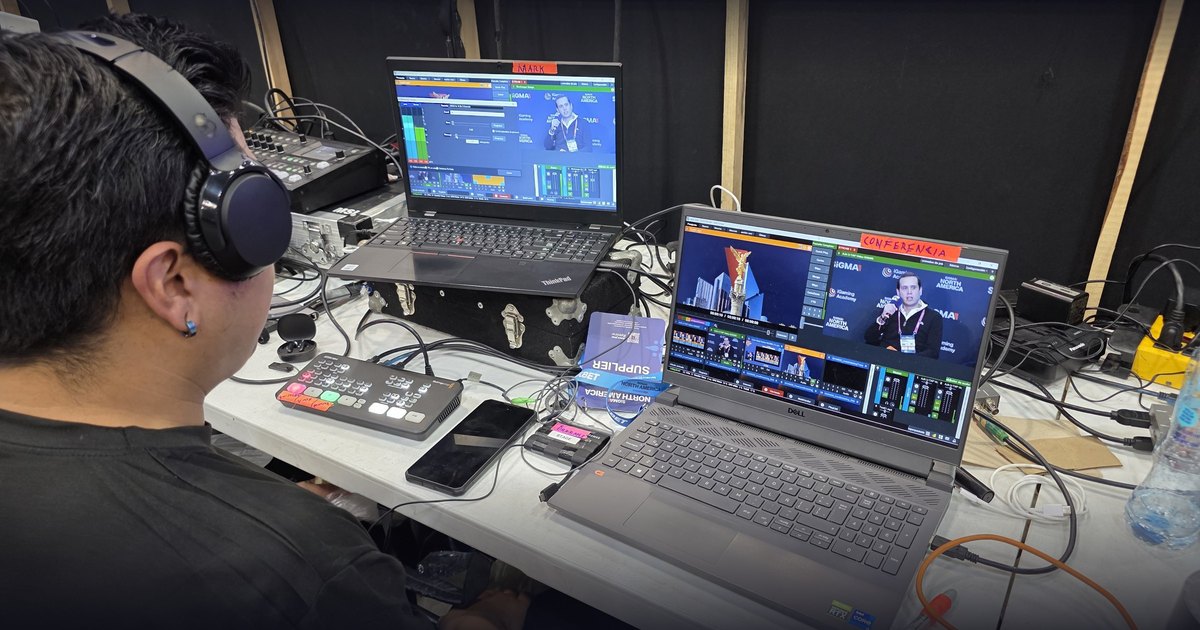

SiGMA live productionSiGMA live productionSiGMA live productionSiGMA live production
